LED Pixel Light

Our pixel light range covers 22 catalogued models, all engineered for permanent outdoor installation and available with OEM and ODM options. The double-encapsulated series (P031X / P032X / P033X) is rated IP68 for continuous submersion.

Request a QuoteCatalogue
P021X LED Pixel Light

P021X LED Pixel Light

Round / square pixel, 6 LED
View model→

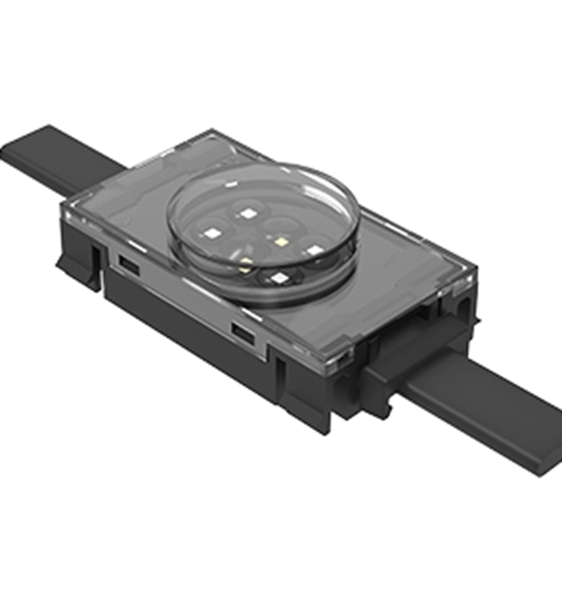

P022X LED Pixel Light

P022X LED Pixel Light

Square modular pixel
View model→

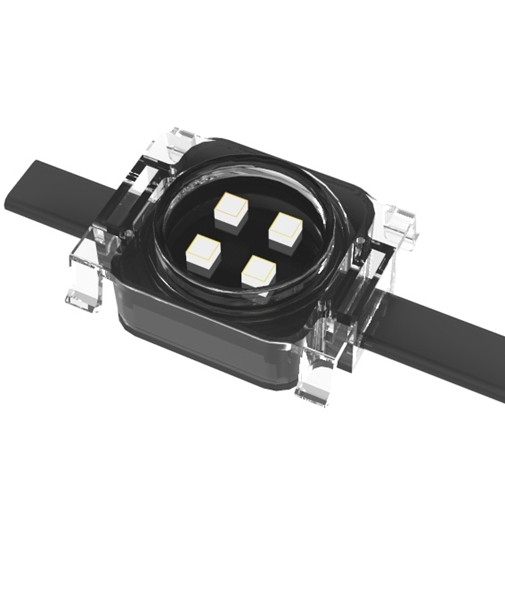

P024X LED Pixel Light

P024X LED Pixel Light

Square modular pixel, 39.67 mm
View model→

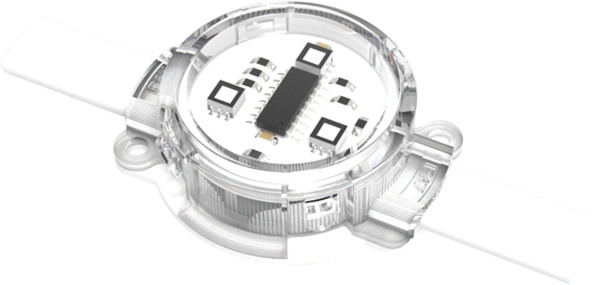

P030X LED Pixel Light

P030X LED Pixel Light

Round 3 LED, IP68, 8 g
View model→

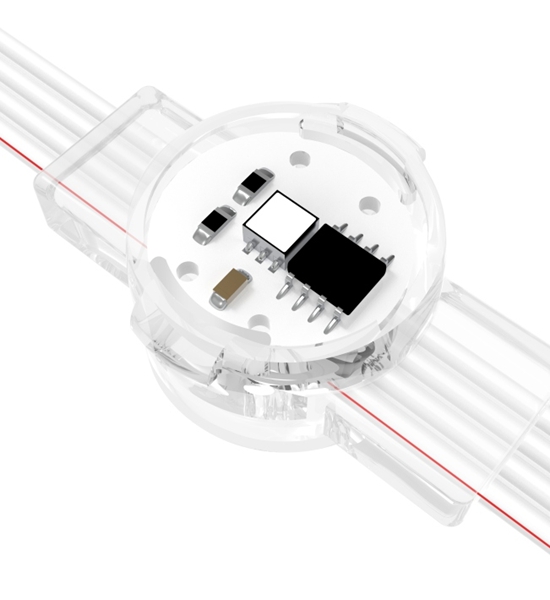

P031X LED Pixel Light

P031X LED Pixel Light

Double-encapsulated, 1 LED, 0.3 W, DC5V
View model→
P032X LED Pixel Light

P032X LED Pixel Light

Double-encapsulated, 3 LED, 0.72 W
View model→
P033X LED Pixel Light

P033X LED Pixel Light

Double-encapsulated, 6 LED, 1.5 W
View model→
P040X LED Pixel Light

P040X LED Pixel Light

Square modular pixel, 3 / 4 LED
View model→
P041X LED Pixel Light

P041X LED Pixel Light

Square modular pixel, 42.9 mm
View model→
P042X LED Pixel Light

P042X LED Pixel Light

Square modular pixel, 54.5 mm
View model→

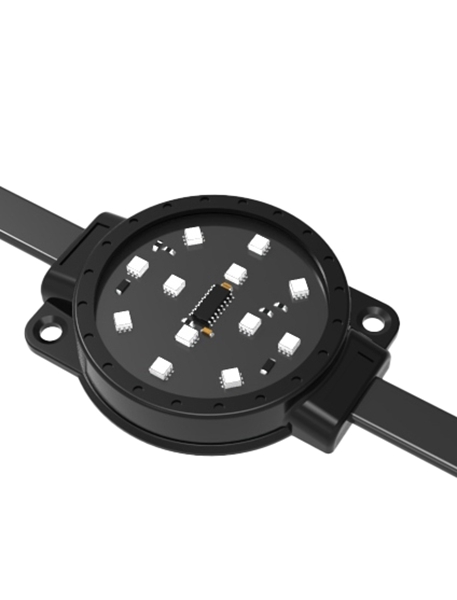

P043X LED Pixel Light

P043X LED Pixel Light

12 LED, 3 W, 30 cd/pcs
View model→

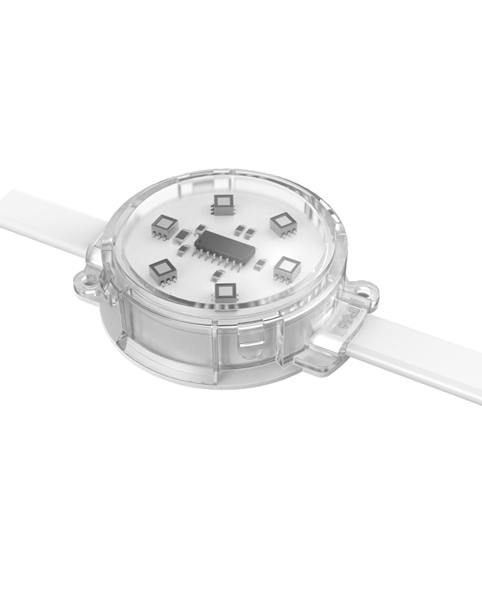

P045X LED Pixel Light

P045X LED Pixel Light

6 LED, IP68, 18 g
View model→

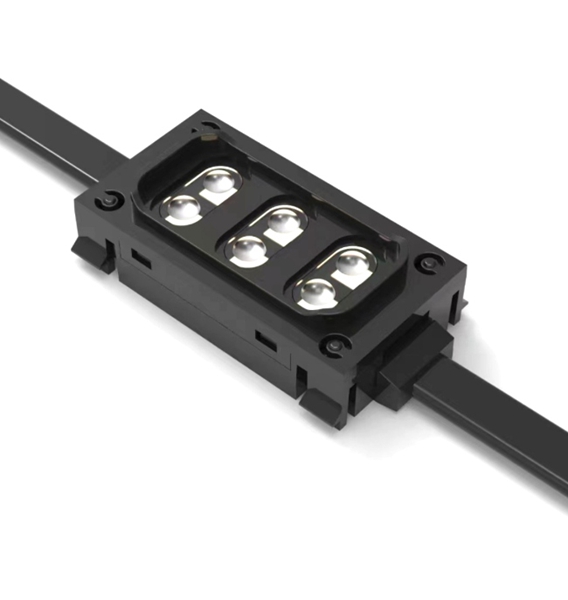

P061X LED Pixel Light

P061X LED Pixel Light

Rectangular 6 / 4 LED
View model→

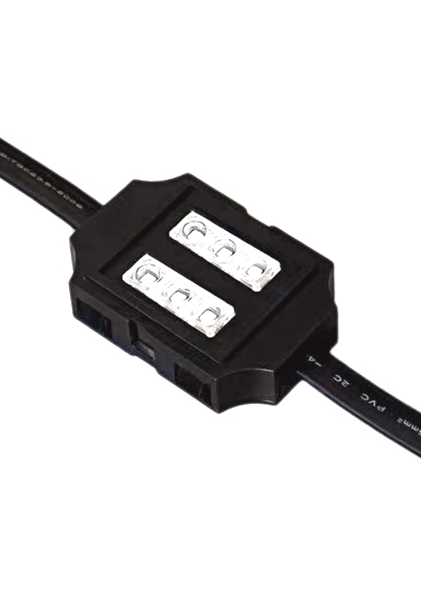

P063X LED Pixel Light

P063X LED Pixel Light

65 × 64.46 × 16.10 mm
View model→

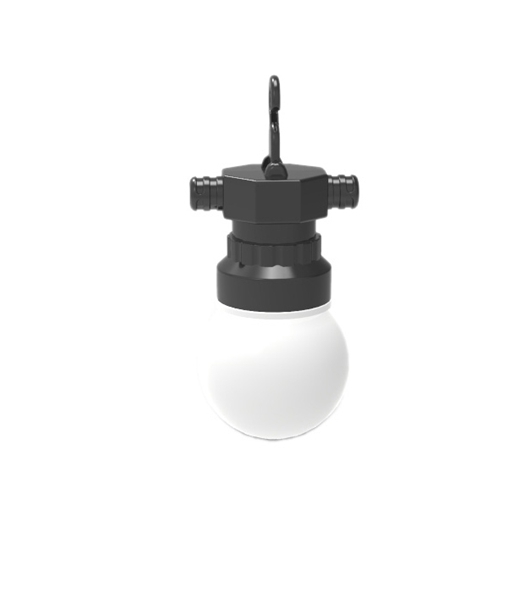

P073X LED Pixel Light

P073X LED Pixel Light

Aluminium housing, 35 g
View model→

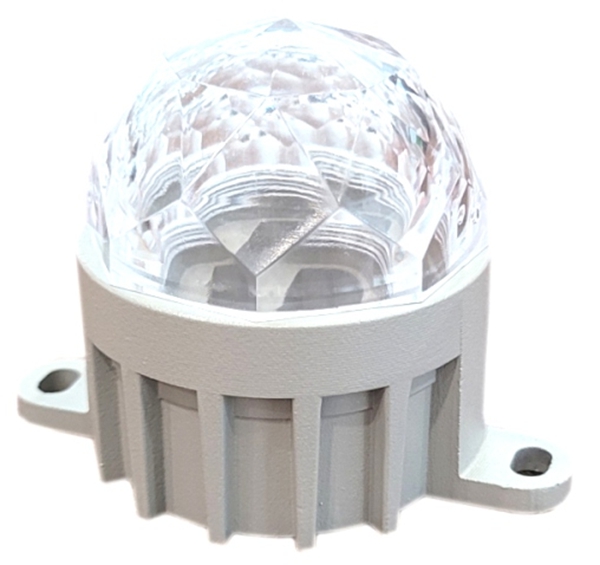

P312 LED Pixel Light

P312 LED Pixel Light

12 SMD5050, 3 W, 30 cd/pcs
View model→

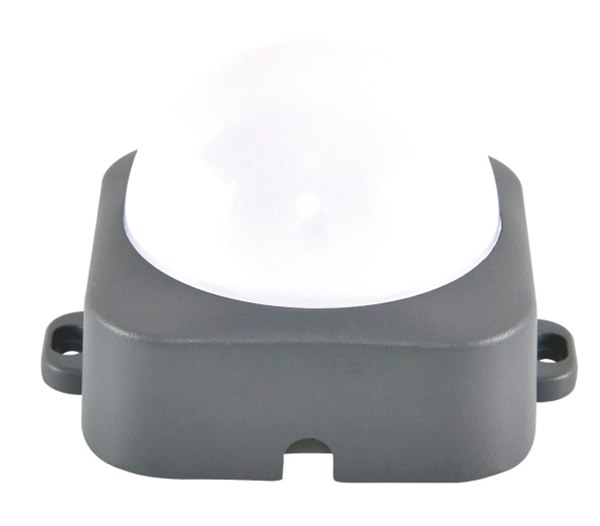

P314 LED Pixel Light

P314 LED Pixel Light

12 SMD5050, 3 W, 30 cd/pcs
View model→

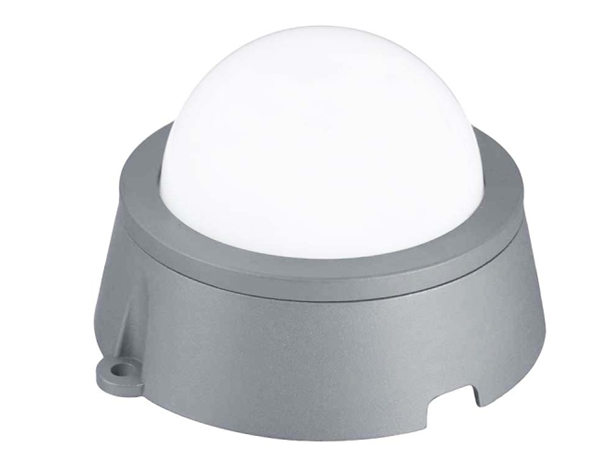

P317 LED Pixel Light

P317 LED Pixel Light

12 SMD3535, 3 W, aluminium, 350 g
View model→

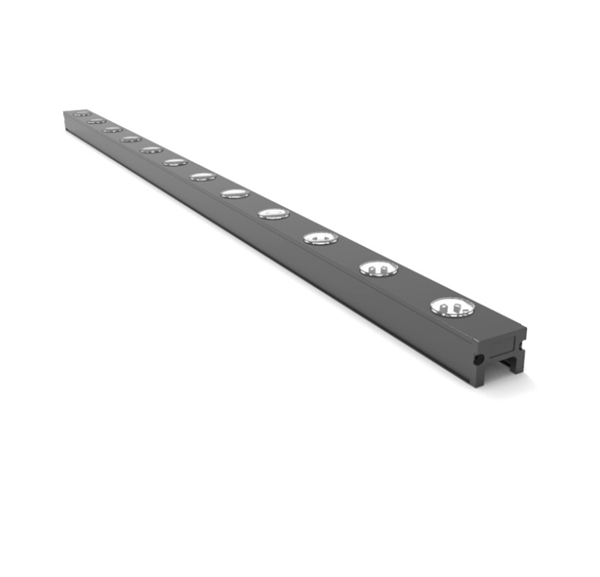

XD-A-X LED Pixel Light

XD-A-X LED Pixel Light

Ultra-long distance, 70 m single-point power supply
View model→
Technical Overview

Typical specifications

SpecificationValueLED SourceSMD3535 / SMD5050 (Epistar / CREE / Osram)Power0.3W per LED (P031X) · 0.72W (3 LED) · 1.5W (6 LED) · 3W (12 LED)Input VoltageDC 5V (P031X) / DC 12V / DC 24V / DC 48VGrayscale256 / 4,096 / 65,536ColourRGB / RGBW / Single colour (2700–6500K)Beam Angle120°IP RatingIP67 / IP68 — rated for continuous submersion (1 m)ControlTTL serial / DMX512 parallel (both supported)HousingFlame-retardant weather-resistant engineering plastic + PC lens · aluminium + PVC cableOperating Temp.-30°C to 50°CLifespan> 50,000 hoursWarranty3 years — 5 years on single-colour versions

Key features

  • Double-encapsulated series (P031X / P032X / P033X) rated IP68 for outdoor facades
  • B version: breakpoint continuation — signal passes through if one unit fails
  • High-strength potting glue for heat dissipation and water proofing
  • Outdoor lightning protection (ESD) design as standard
  • Fully potted, pre-wired and pre-tested before shipment

Typical applications

  • Building facade media displays
  • Bridges and pylons
  • Theme parks and plazas
  • Hotel and retail facades
  • Stage and entertainment venues
