LED Media Mesh

Our media mesh range covers 4 catalogued models, specified from 2,000 to 5,000 nits depending on application. Modules are individually removable for maintenance.

Request a QuoteCatalogue
GS-P41-01D LED Media Mesh

GS-P41-01D LED Media Mesh

Grille screen, 115 W/m², 1,200 cd/m²
View model→
GS-P41-01C LED Media Mesh

GS-P41-01C LED Media Mesh

Grille screen, 115 W/m², 1,600 cd/m²
View model→
WG-041X LED Media Mesh

WG-041X LED Media Mesh

Mesh screen, IP67, 1000 × 1000 panel
View model→

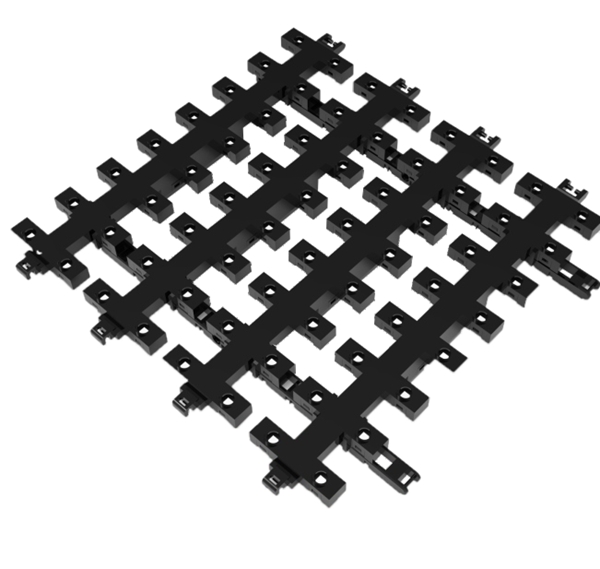

WG-1024X LED Media Mesh

WG-1024X LED Media Mesh

Modular cube, 1024 pcs SMD3535, 2,700 cd/m²
View model→
Technical Overview

Typical specifications

SpecificationValuePixel Pitch31.25 mm / 22.5 mm meshBrightness2,000 – 5,000 nitsPixel Density240 / 480 / 640 per m² (grille) · 1024 pcs (cube)Transparencyup to 85% / 70%Power115 W/m² (grille) · 305 W/m² (cube)Refresh Rate≥ 3,840 Hz — flicker-free on cameraIP RatingIP65 / IP67Input VoltageDC 5V / 12V / 24V / 48VControlDMX512 / TTL / breakpoint continuationCabinetAluminium profile + PC lens · custom cabinet sizesLifespan> 100,000 hoursWarranty3 years

Key features

  • Modules individually removable — replace one unit without rebuilding the facade
  • Up to 85% transparency with ventilation, suitable for glass curtain walls
  • High refresh rate — no banding when filmed or photographed
  • WG-1024 cube screen installs with steel wire rope — no frame structure required
  • Front and rear serviceable

Typical applications

  • Commercial mall facades
  • Office tower curtain walls
  • Airport and station terminals
  • Exhibition and event stages
  • Brand flagship buildings
